Basic Specifications
| Grill Model | S1 (Electric wood pellet smoker grill for outdoor use) |
| Controller Display | 4.3” 480×800 IPS TFT Colour Display (900 cd/m² brightness) |
| Wireless Connectivity | Bluetooth and WIFI 2.4GHz (20 & 40MHz) |
| Bottom Grill Racks | Stainless Steel – 637 x 464 mm (0.3 m²) |
| Top Grill Racks | Stainless Steel – 622 x 353 mm (0.22 m²) |
| Total Grill Rack Area | 0.52 m² (806 square inches) |
| Power Supply | 220~240VAC 50Hz |
| IP Rating | IPX4 (GR-S1-03 onwards) |
| Max Power Draw | 2200W (heating element installed) 250W (non heating element cooking modes) |
| Wood Pellet Hopper Capacity | 6 kg (24+ hours at 100℃ / 212℉ temperature cooking) |
| Assembled Dimensions | 990mm wide x 655 deep x 1190 tall |

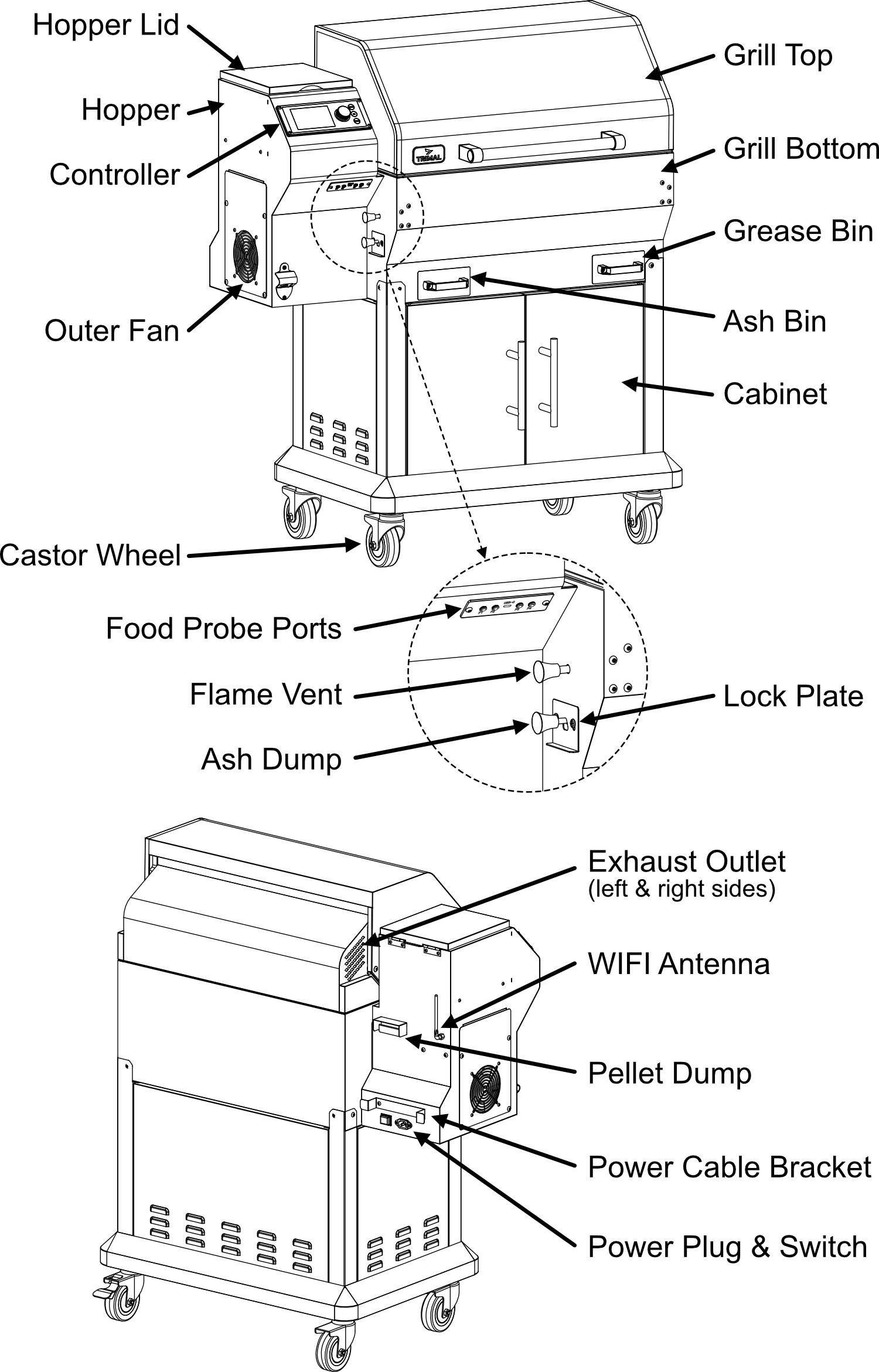

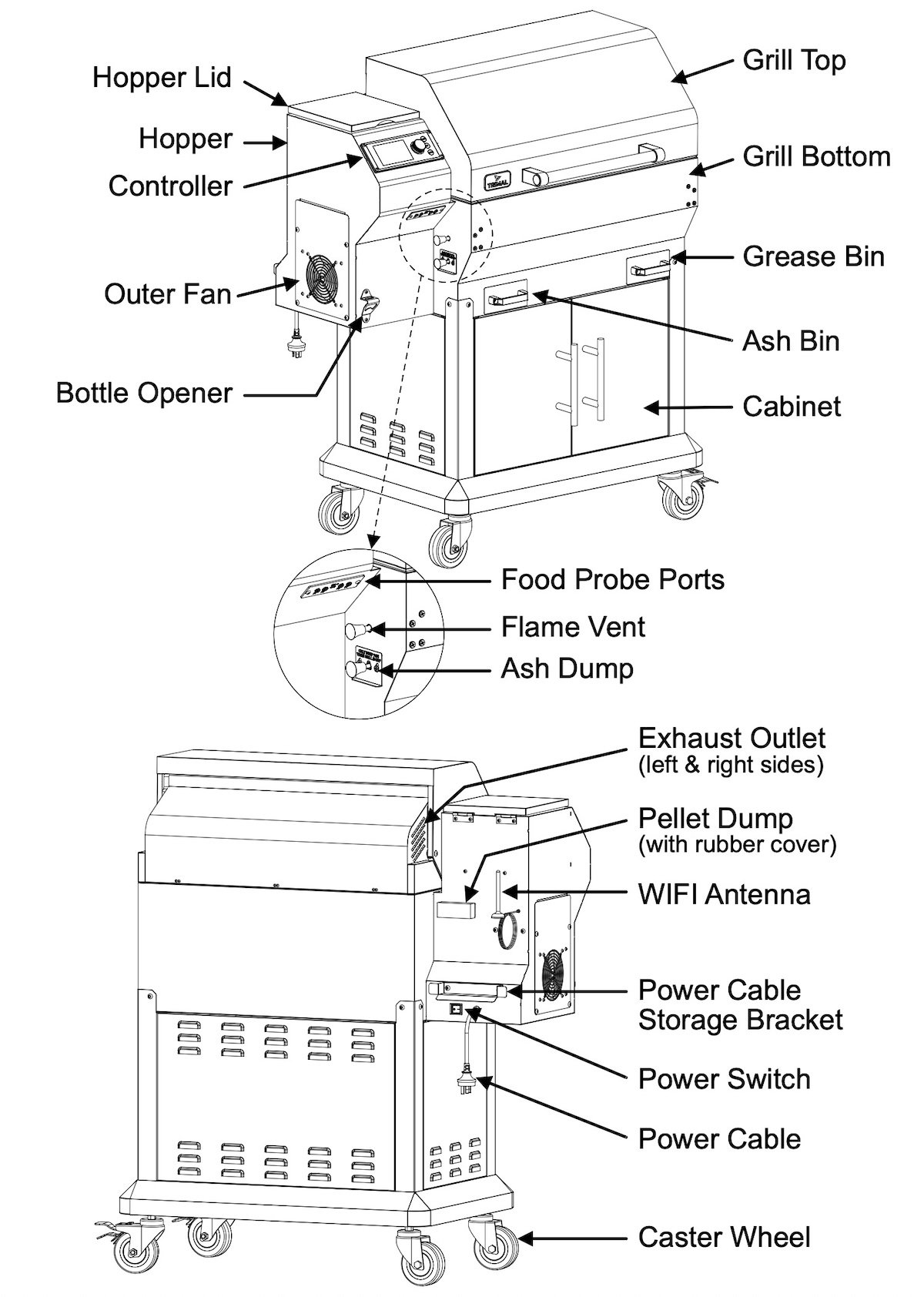

Grill External Parts Diagram

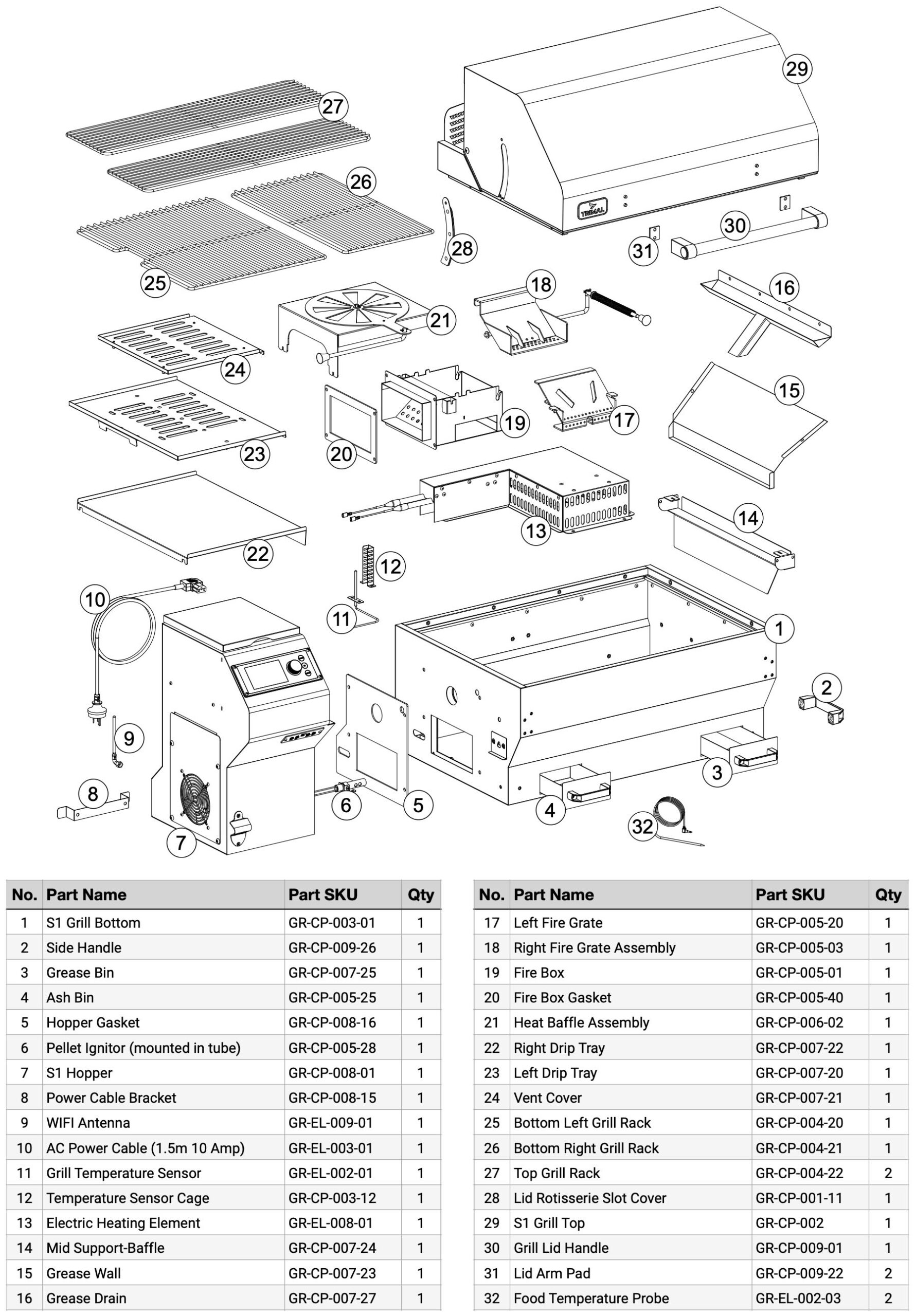

Grill Exploded Parts Diagram

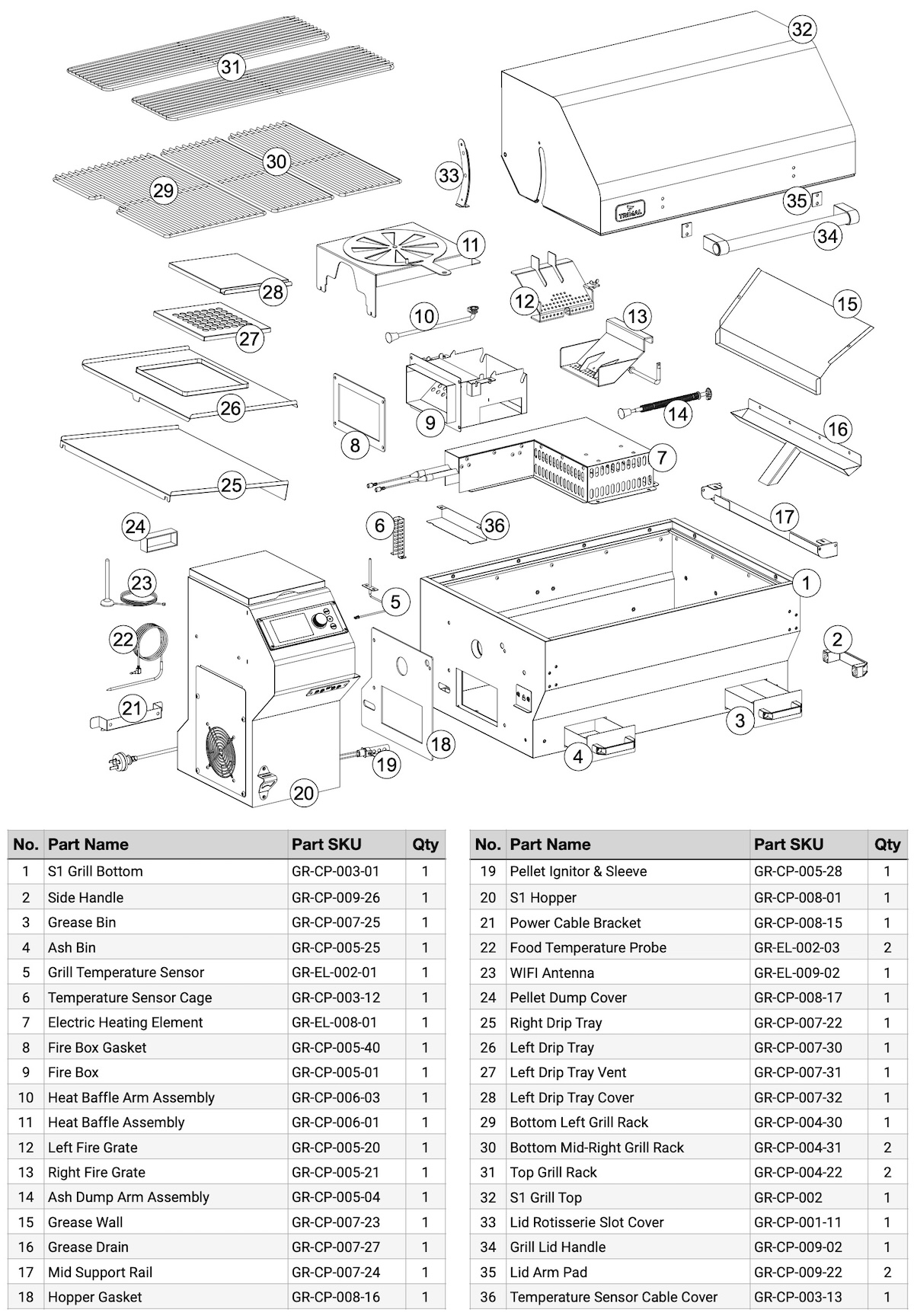

Exploded diagram below is of the current GR-S1-03 (V3) model. Refer to owner manual for earlier models.

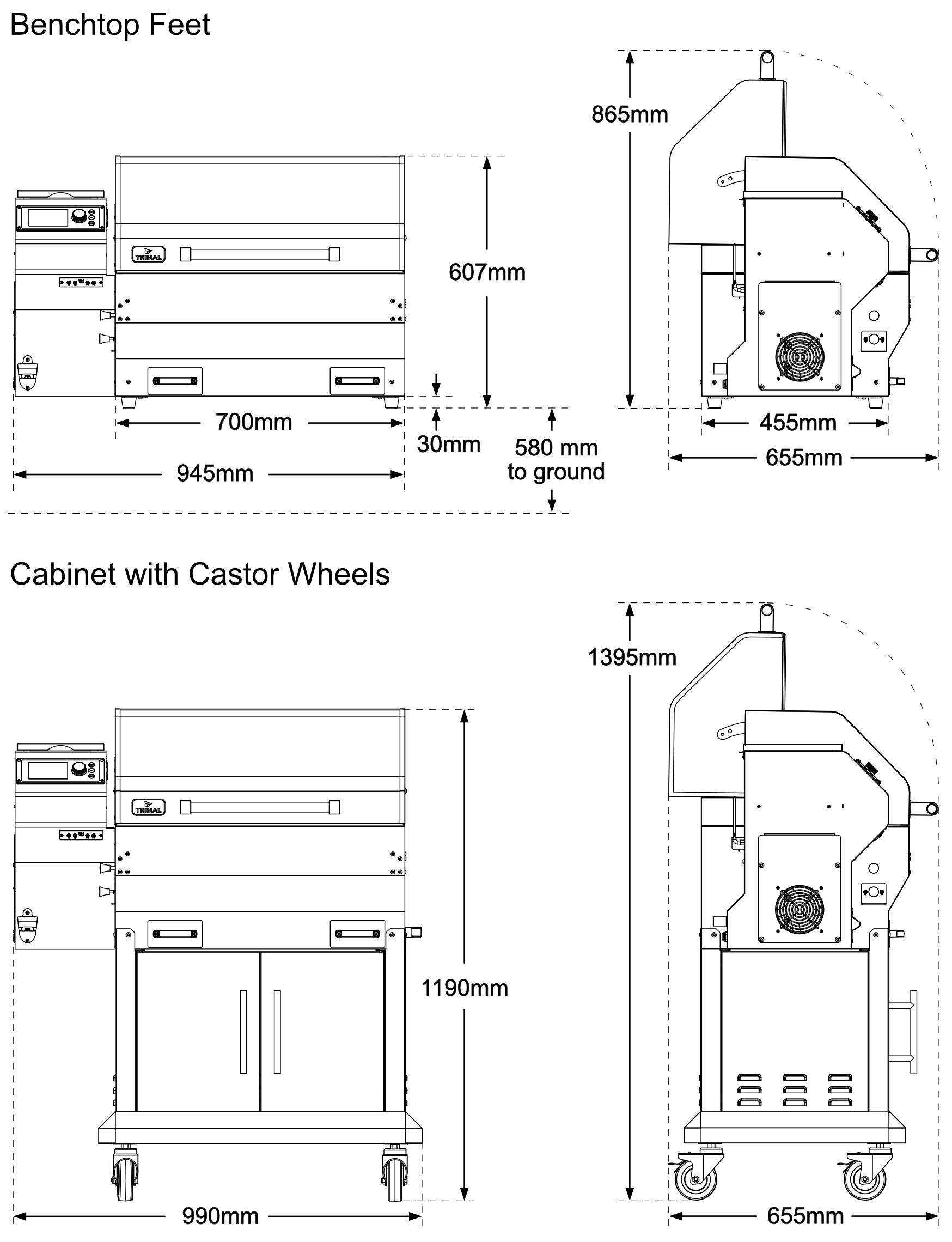

Grill Dimensions
- There are two mounting options for the S1 grill:
- Benchtop feet are perfect for when building into an outdoor kitchen (built in).
- Cabinet is great for storing tools and wood pellets and features large 100mm diameter castor wheels making it easy to roll around.

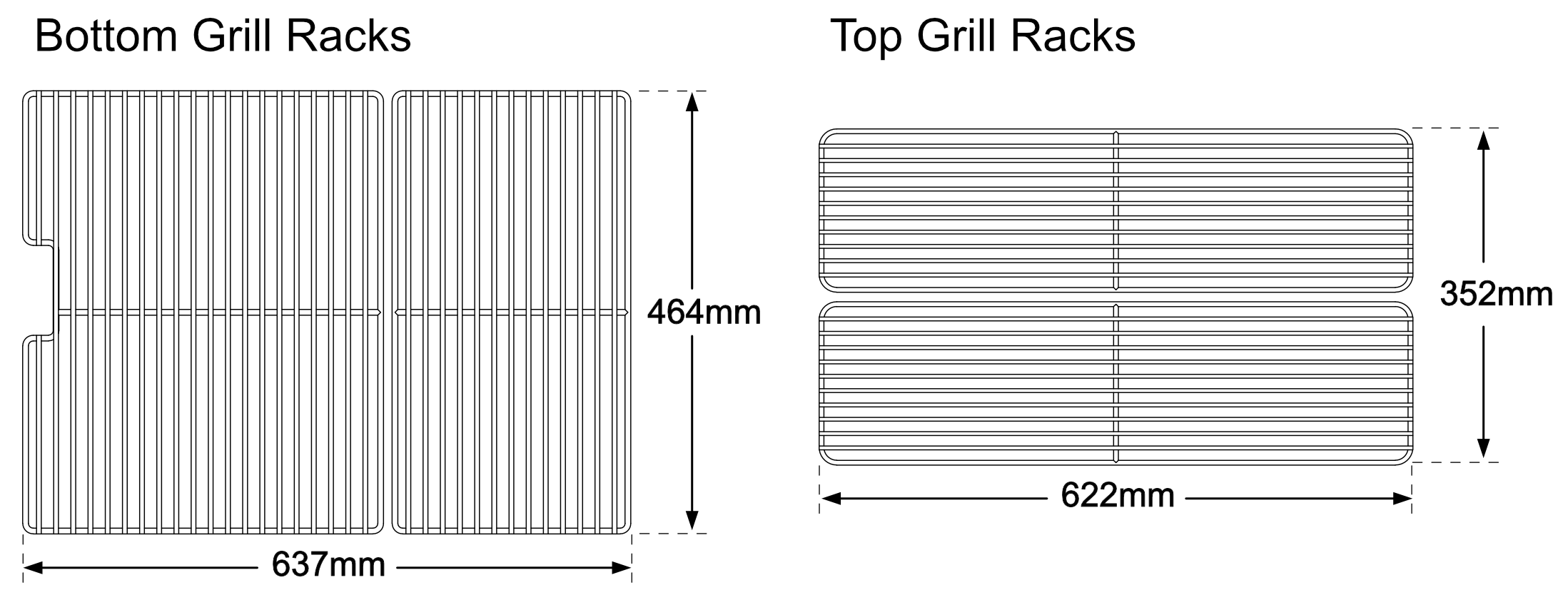

Grill Racks
Made from stainless steel these racks are durable and easy to clean.
Wiring Diagram
DISCONNECT POWER: Always disconnect the power supply (switch off and unplug) before attempting any repairs. Turn off power before any cleaning.
Product Compliance
The Trimal S1 has undergone extensive safety and compliance testing and meets the requirements of the following standards:
EMC (Electromagnetic Compatibility)
Verification No: GZCR2507001048HSV
- EN IEC 55014-1: 2021
- EN IEC 55014-2: 2021
- EN IEC 61000-3-2: 2019 +A1:2021 +A2:2024
- EN 61000-3-3: 2013 +A1:2019 +A2:2021
- EN 301 489-1 V2.2.3
- EN 301 489-17 V3.3.1
- EN 300 328 V2.2.2
- EN IEC 62311: 2020
Low Voltage Directive
Certificate No: LVD GZES2505010346HS
- EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019 + A15:2021 + A16:2023
- EN IEC 60335-2-102:2024 + A11:2024
- EN 60335-2-6: 2015 + A1: 2020 + A11: 2020
- EN 60335-2-78:2003 + A1: 2008 + A11: 2020
- EN 62233: 2008
Australian/New Zealand Standards
Certificate No: SGS/251006
- AS/NZS 60335.2.6:2014 + A1 + A2
- AS/NZS 60335.2.102:2018
- AS/NZS 60335.1:2020 + A1
- AS/NZS 60335.2.78:2022 and AS/NZS 60335.1:2022
