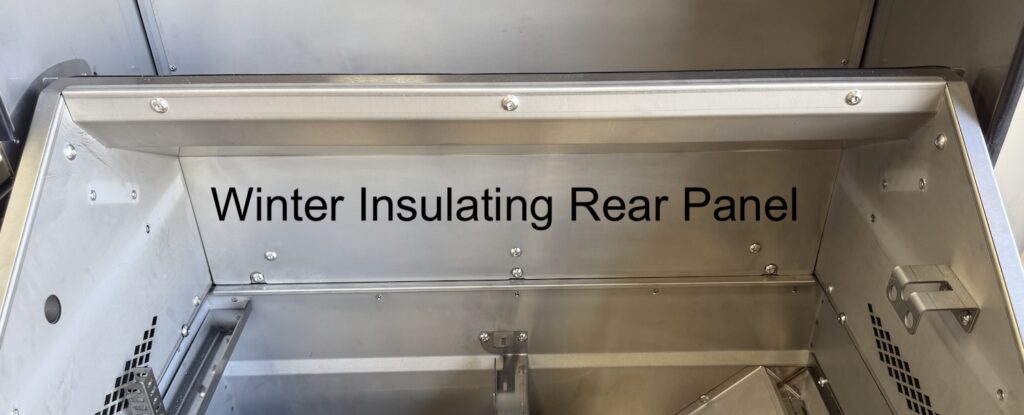

Rear Panel Overview
The inner rear wall of the Trimal S1 has an insulating panel which contributes significantly to the low heat loss properties of the grill – providing low pellet usage and fast heat up times even in cold weather.
The disadvantage of such great insulation is in warmer climates (or summer weather), the grill can struggle to operate at temperature below 100℃, as even the tiniest fire, consuming only 200 grams of wood pellets per hour, is still enough to heat the grill by 60-70℃.
The rear panel can be permanently removed, or just taken off in the summer months – reinstalled in the winter – providing the best of both worlds. Think of this panel as a insulating cover (warm jumper) for your grill when the weather is cold!
What difference will removing make?
On a 30℃ day, when the grill is set to a low temperature (<110℃), the difference between having the rear insulation rear panel in/out is around 10 to 15℃ (depending on the wind speed).
Grill still too hot?

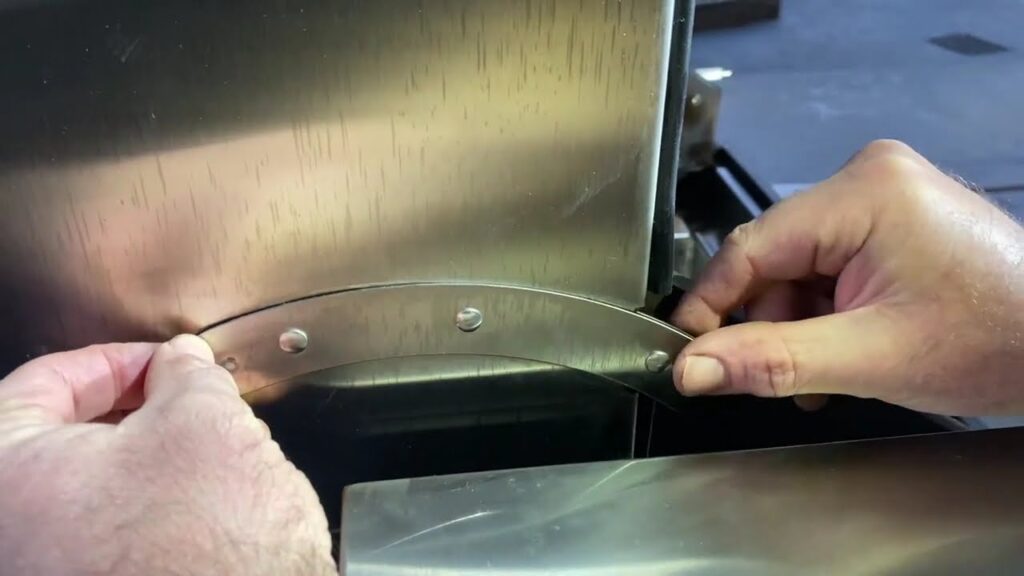

If the grill is still running too hot more heat can be released by removing the Rotisserie Shaft Cover.
Why not just run the fans faster?
This sounds like a great idea, as it would increase heat loss, but increasing the air flow risks continually blowing out the tiny fire, resulting in regular temperature drops and subsequent temperature spikes when the fire relights.
Remember that the grill is burning a tiny little fire using as few as 180 grams of wood pellets per hour, so there is a fine balance between pellet delivery timing and fan speed to ensure it stays lit.
Removal Instructions
Side Rails

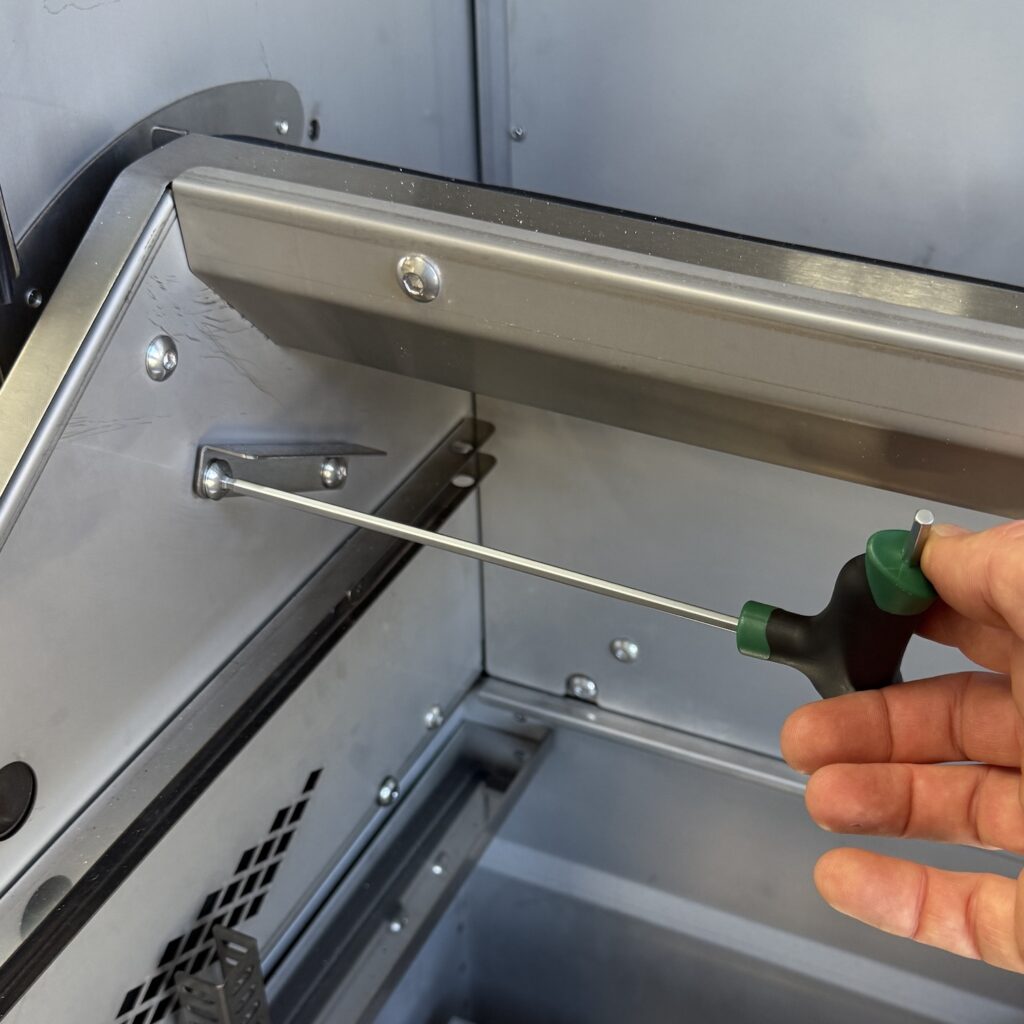

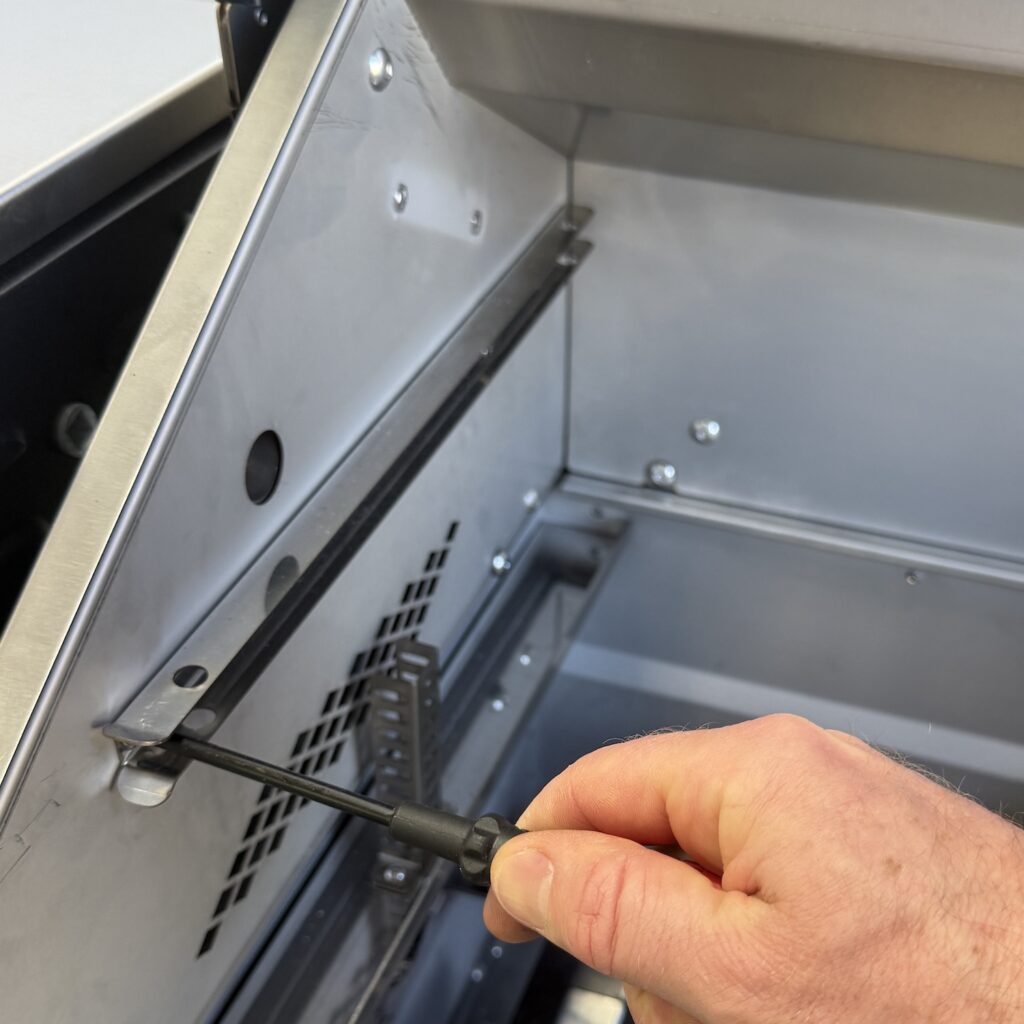

To allow the rear panel to slide out, the side rails and storage brackets for the top racks should be temporarily removed.
Rear Panel

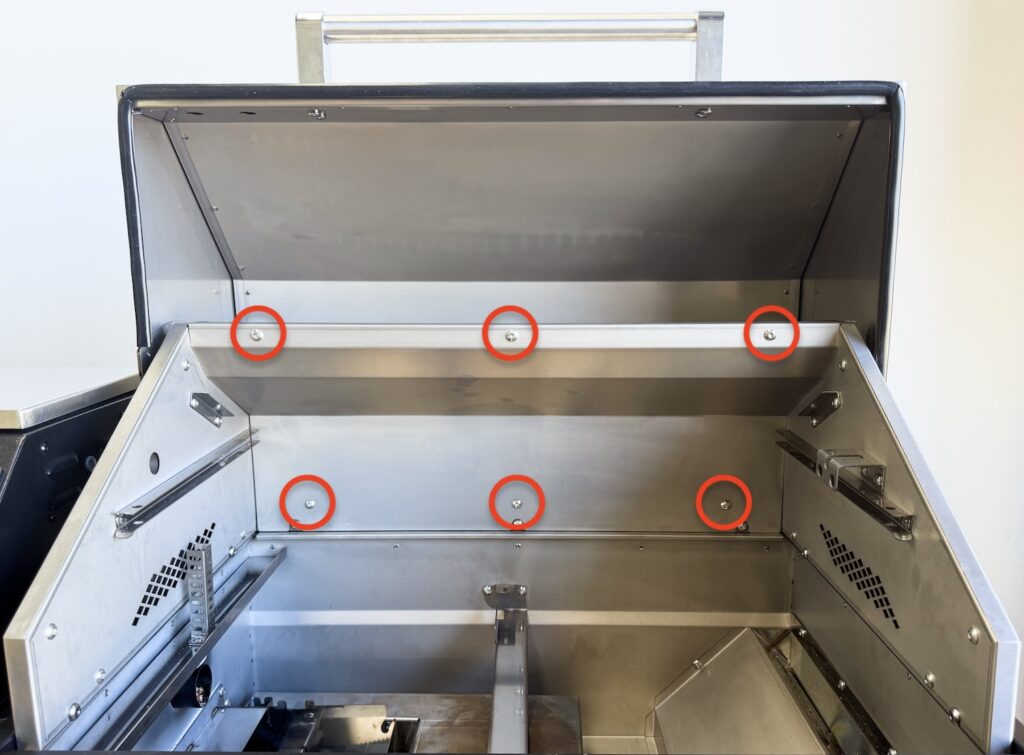

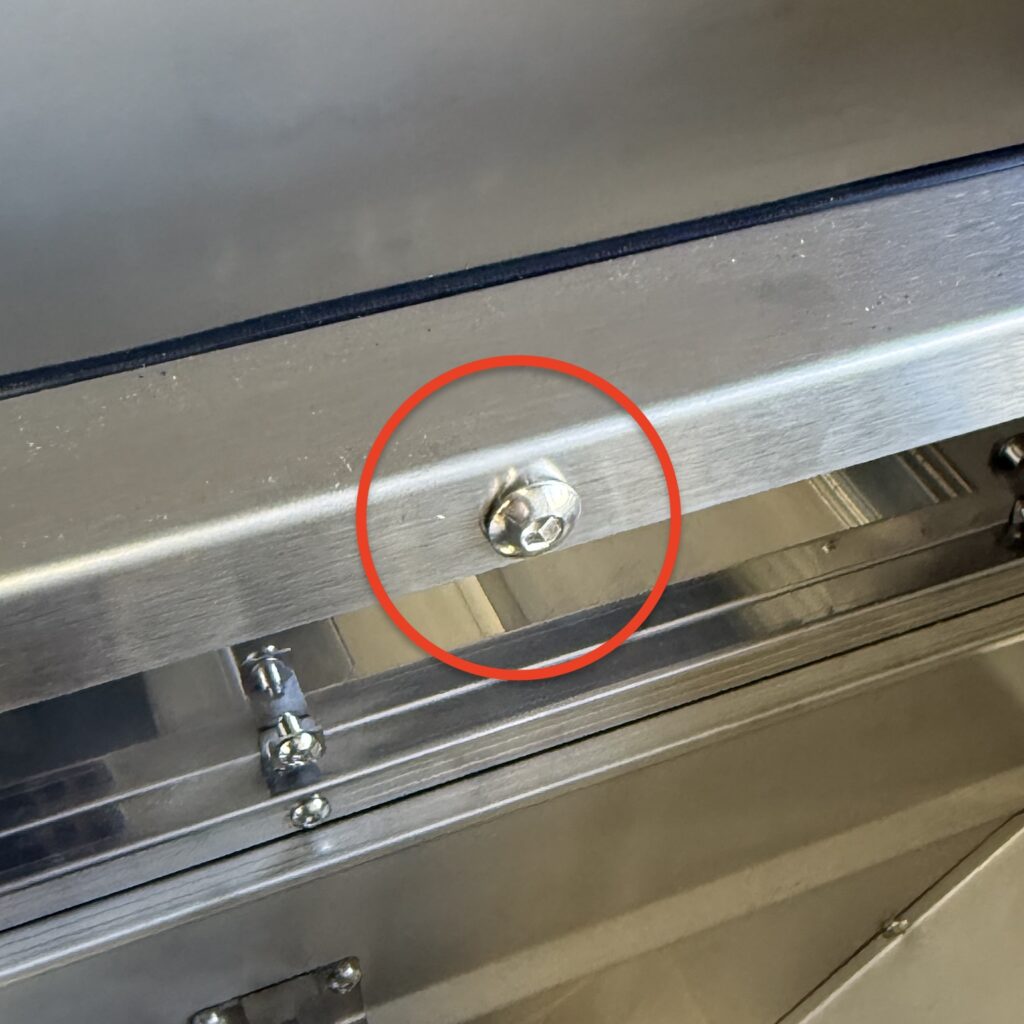

Remove the 3 top and 3 rear screws that secure the rear panel in place.

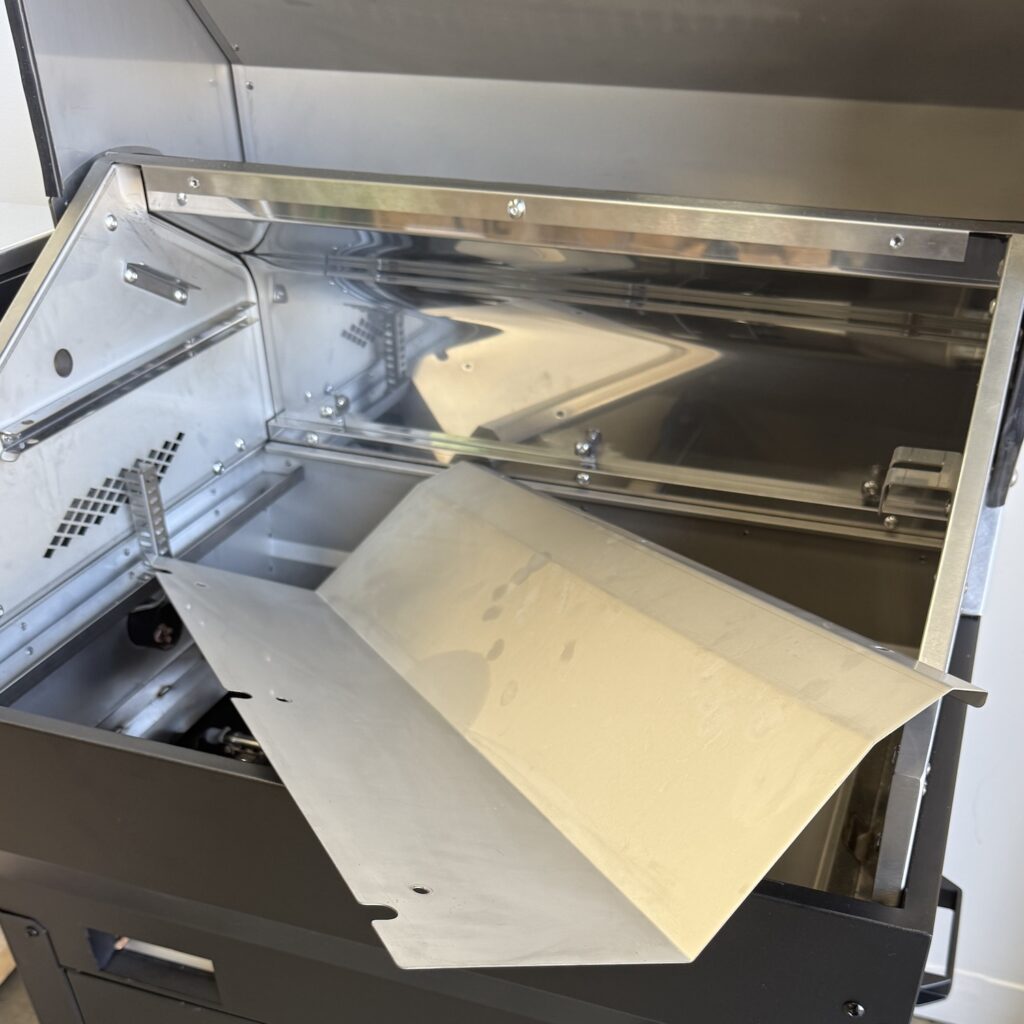

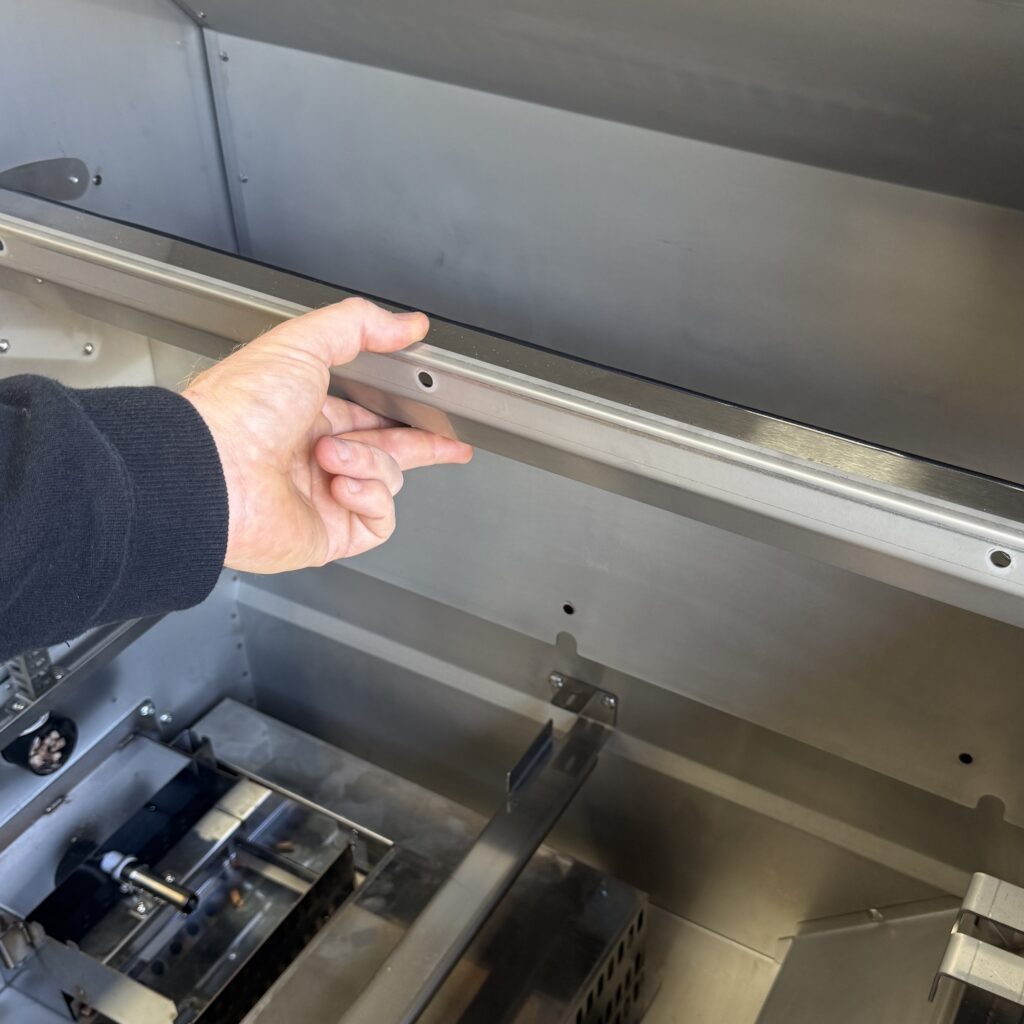

Slide the rear panel out.
Return Screws

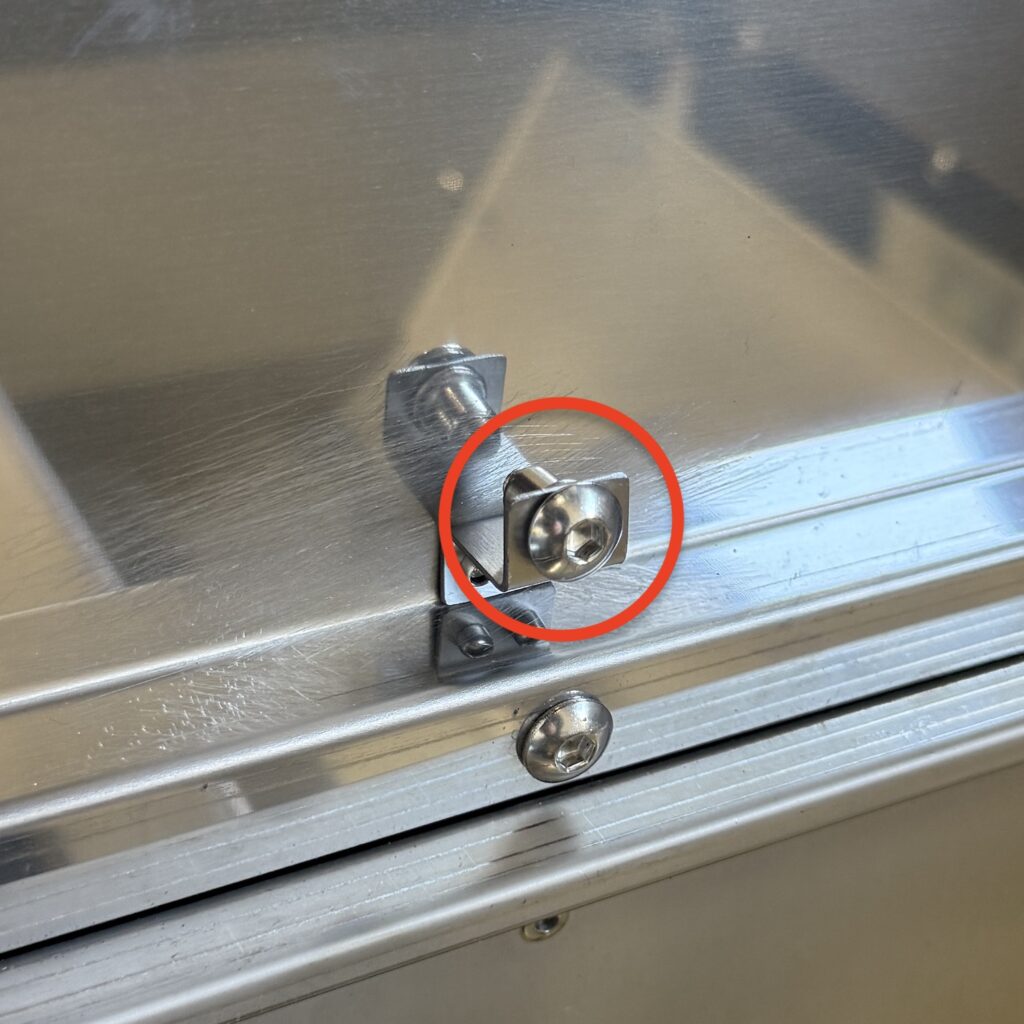

Put the rear and top 3 screws back in the holes, so neat and they don’t get lost.
